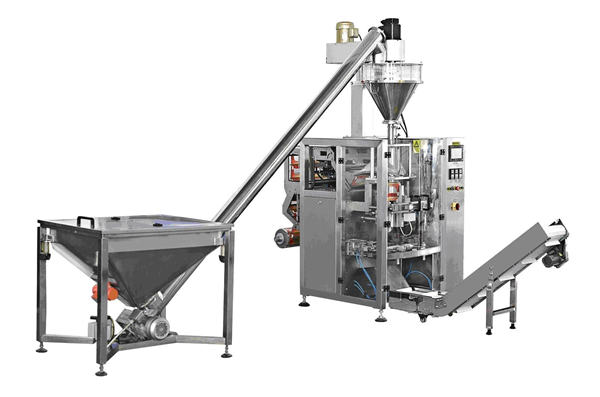

Automaatne pudelitüüpi spiraaltoitepulbri täitmise masin

Kodu / Täitmismasinad / Automaatne pudelitüüpi spiraaltoitepulbri täitmise masin

Automaatne pudelitüüpi spiraaltoitepulbri täitmise masin

The machine combines Screw Filling and Electronic Weighing Feedback two measurement methods,it is suitable for the quantitative filling of all kinds of powder or fine granular materials such as fresh natural spices, food additives Flavoring, flour powder, protein, solid drink, Sugar, etc., which are widely used in food, seed, medical and chemical industry.

Põhijooned


1. Suitable for powder quantitative filling of bottles, cans and bags, The filling mouth is adjustable according to different containers.
2. Photoelectric induction unloading materials, or foot pedal switch optional.
3. High precision, error≤±1%, fast speed.
4. Digital tube display, simple and convenient to operate.
5. The filling auger is driven by Step Motor, and the speed is adjustable.

Technical Parameters of Packaging Machine


Measuring Range1-5000g
Precision Accuracy± 1%
Packaging Speed1200-3500 Bag/hour
PingeAC380V, 50HZ, can be custmized
Jõudu900W
Hopper Capacity75L
MaterjalStainless Steel 304
Mõõtmed69 X 106 X 190cm
Kaal200KG

Technical Parameters of Auger Feeder


Feeding Speed0.5-3 T/hour
Lifting Height1.6m (Special requirements can be customized)
Hopper Capacity100-300 Kg
JõuduAC 220/380V 50/60Hz
Pinge750W
Kaal150Kg
Mõõtmed230× 80× 210 cm

Kiirdetailid


Tüüp: täitmismasin

Seisund: uus

Kasutamine: jook, keemia, tarbekaubad, toit, masinad ja seadmed, meditsiin, tekstiil

Pakendi tüüp: Kotid, tünn, pudelid, kanistrid, kapsel, karbid, ümbris, kott, püstist kott

Pakkematerjal: klaas, metall, paber, plastik, puit

Automaatne hinne: poolautomaatne

Ajami tüüp: elektriline

Voltage:380V 50Hz

Power:900W

Päritolukoht: Shanghai, Hiina (mandriosa)

Kaubamärk: NPACK

Dimension(L*W*H):69x106x190cm

Kaal: 350 kg

Sertifikaat: ISO9001

Pakutakse müügijärgset teenindust: masinate hooldamiseks välismaal asuvad insenerid

Name:Automatic Bottle Type Spiral Feeding Powder Filling Machine

Measuring range:1-5000g

Precision accuracy:± 1%

Packaging Speed:1200-3500 Bag/hour

Materjal: roostevaba teras

Hopper Capacity:75L

Operation Panel:Keyboard

Motor Type:Step Motor

Keywords:Spiral feeding powder filling machine

Function:Automatic powder filling machine
