Automaatne kahepoolse märgistusega masin lemmikloomade plastikust klaaspudelile

Kodu / Märgistamismasinad / Automaatne kahepoolse märgistusega masin lemmikloomade plastikust klaaspudelile

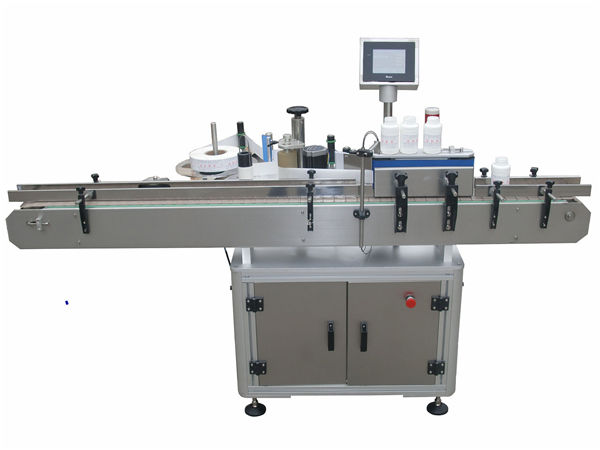

Automatic Double Sides or Single Side Round Bottle Labeling Machine Price

Tootekirjeldus


1. We’re the first to use high speed servo labeling system in Asia in 1980.
2. Applicable to various of bottles, such as flat ,taper,round, square bottles, etc.
3. High-precision labeling system, with labeling accuracy ≤±1mm.
4. Stable speed : 0-300 bottles / min.
5.Correction mechnism of synchronous chain to ensure precision position after correcting bottles.
6. Upper pressure mechanism with digital display, and big adjustment range, it's suitable for various of specification bottles.
7.Universal adjustment mechanism for labeling head,allowing perfect labeling for all types of taper bottles.
8. Whole machine adopts SUS304 stainless steel and A6061high-strength aluminum alloy,with good appearance and full
compliance of specification of cGMP, FDA, SGS, CE.

Ümmarguse pudeli märgistamise masina videod




Märgistuskiirus
0-300(pcs/min)(relate to material and label size)
Märgistamise täpsus
±1mm(Except product and label themselves accuracy)
Sildi suurus
10-120(L)mm 10-80(H)mm
Suitable product
flat ,taper,round, square bottles,etc.
Label roll size
I. Dia. 76mm O. Dia. Max 360mm
Masina suurus
2800(L)* 1200(W)* 1570(H)mm
Toiteallikas
AC220V/380V 50Hz  4.2KW

Kiirdetailid


Tüüp: märgistusmasin
Seisund: uus
Kasutamine: jook, keemia, tarbekaubad, toit, meditsiin
Pakendi tüüp: pudelid
Pakkematerjal: klaas, metall, paber, plastik, puit
Automaatne hinne: automaatne
Ajami tüüp: elektriline
Voltage:220V/380V 50/60HZ
Power:3.5KW
Päritolukoht: Shanghai, Hiina (mandriosa)
Brändi nimi: Npack
Dimension(L*W*H):2800(L)*1200(W)*1570(H) mm
Kaal: 500kg
Sertifikaat: CE-sertifikaat
Pakutakse müügijärgset teenindust: masinate hooldamiseks välismaal asuvad insenerid
Product name:Automatic Labeling Machine for flat round taper aquare bottle
Model:SHL-3511
Bottle type:Square Flat Taper Round Bottle
Labeling speed:0-300 Bottles/min
Kasutamine: liimpudelite pudelid
Function:Functional Ahesive Sticker Labeling
Materjal: SUS 304 roostevaba teras
Advantage:Widely Used
Name:Automatic double sides labeling machine for pet plastic glass bottle
Other name:Automatic Plastic Jars Labeling M
