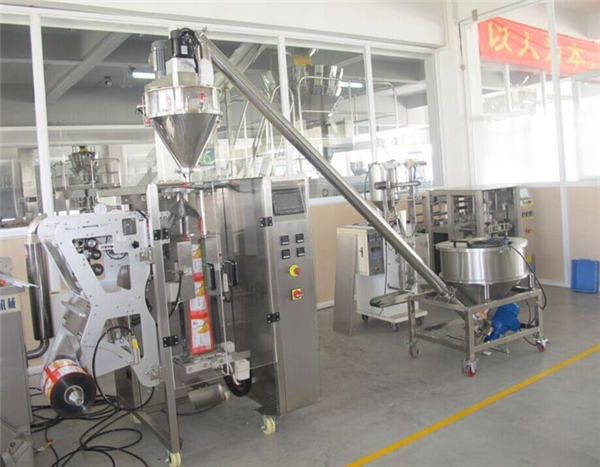

Tõstev pulber ja automaatne pulbrikoti täitmise masin

Machine List

Screw feeder
Auger Filler
Vertical Form Fill Seal Machine (Bag width 50-400 mm)
Finished products conveyor
Check weigher (OPTION)
Metal Detector (OPTION)
Collect Table (OPTION)

Tööpõhimõte

1). Filling products on feed hopper of screw feeder on floor;
2). Products will be lifted on the top of auger for feeding;
3). Auger Filler will automatic weighing according to preset weight;
4). Preset weight products will be filled into VFFS machine for bag sealing;
5). Finished package will be outputed to next equipment (check weigher, collect table, etc).

Funktsioon


1). Fully-automatically procedures from material feeding, filling and bag-making, date-printing to finished products output;

2). Because of the unique way of mechanical transmission, so its simple structure, good stability and strong ability to over loading.;

3). Multi-languages touch screen for various clients, English, French, Spanish, etc;

4). Servo motor driving screw is characteristics of high-precision orientation, high-speed, great-torque, long-life, setup rotate speed, stable performance;

5). Side-open of the hopper is made of stainless steel and is consist of glass,damp. material movement at a glance through the glass,air-sealed to avoid the leak, easy to blow the nitrogen, and the discharge material mouth with the dust collector to protect the workshop environment;

6). Double film pulling belt with servo system;

7). Only control touch screen to adjust bag deviation. Simple operation.

Spetsifikatsioonid


Weighing Range
10 - 1000 g
Bag Size
80-350mm(L) ; 50-250mm(W)
Bag Style
Pillow Bag; Gusset Bag; Four side seal
 Bag Material
Laminated film; Mono PE film
Film Thickness
0.04-0.09mm
 Kiirus
40 - 120 times/min
Täpsus
100 - 500g,≤±1%; > 500g,≤±0.5%
Hopper Volume
45L
Control Penal
7" Touch Screen
Air Consumption
0.8Mps  0.4m3/min
Toiteallikas
220V/50HZ or 60HZ; 15A; 4000W
Driving System
Servo Motor

1. Feeding Machine

1). Different volume hopper
Function: contain different volume powder

2. Filling Machine

1). Different screw
Function: for different weight bag

3. Vertical Packaging Machine

1). Thermal Transfer Printer (Chinese Brand)
Function: easy for change printing content and layout

2). Bag Former
Function: for different bag width

3). Gusset Bag/Euro Hole/Easy Open
Function: different bag shape requirement

Kiirdetailid


Type: Other
Seisund: uus
Rakendus: jook, keemia, tarbekaubad, toit, masinad ja seadmed, meditsiin
Pakendi tüüp: konservikarbid, ümbris
Pakkematerjal: puit
Automaatne hinne: automaatne
Ajami tüüp: elektriline
Voltage: 220v(different size can be customized), 3phase380v3phase220v3phase415v50-60Hz
Võimsus: 4kw
Päritolukoht: Shanghai, Hiina (mandriosa)
Kaubamärk: NPACK
Weight: 800kg, 1430kg
Dimension(L*W*H): 1750*690*2000mm
Sertifikaat: CE
Pakutakse müügijärgset teenindust: masinate hooldamiseks välismaal asuvad insenerid
Model: SF-G001
Packing material: Laminated flim ,PE etc
Packing accuracy: Within ±1.5c%
Pouch height: 95-280mm(supply bu user)
Max volumn: 2500ml
Electricity consumption: 4kw
Air condumption: 0.6
