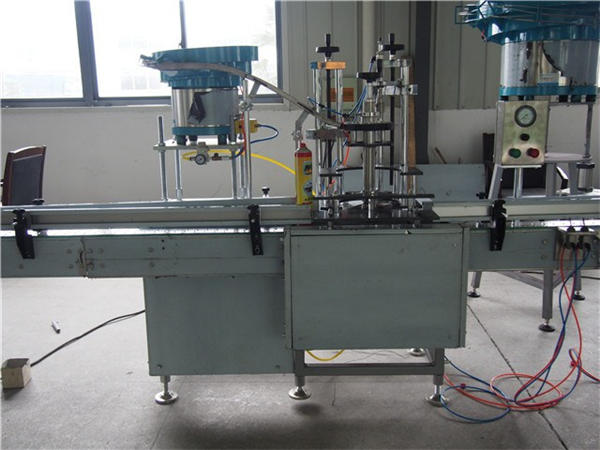

Toilet water filling machine
1.Filling toilet wash liquid
2.Filling 8000bph,filling 40-1000ml
4.prevent dropping and leaking
The technical performance
The filling machine adopts the fixed flow channel parameter, controlling the the flowmeter by controlling the filling time to realize filling for different measurement.The filling process is under control of PLC.All operations complete on the touching screen. .
The filling machine fills in two rows,under the action of two-in-one conveying belt,into next working procedure,enhancing production efficiency.It is an ideal kind of packaging equipment for chemical,pesticide,daily chemical,medicine,food and cosmetic industry etc.
The filling machine has properties of reliable and stable performance.high efficiency,good adaptability, changing the measuring specification in minutes(no need to change any components,just adjust ),eco-friendly outer frame,filling without drop and leak.
Peamised jõudluse eelised
1. Control system---- The filling machine ado0pts Mitsubishi PLC control system, random minitrimming filling measurement
2. Control panel-----The filling machine adopts 5.6 in. colour screen,easy-operated,stable and reliable
3. Function improvement-----The feeding nozzle of this filling machine is equipped with filling blocker. This machine can realize diving filling according to the material properties.(this function can be selected)
4. Real-time alarm-----The filling machine can realize automatic alarming when the fault happens,automatic stopping and alarming when the system appears serious breakdown.
5.Electrical elements-----The filling machine adopts international famous brand to ensure the remarkable quality, stability and high precision.
Machine elements-----The parts contacted with the material use the 316 high-quality stainless steel and non-poisonous, anti-corrosive PTEF hose.Other machine parts use the 304 high-class stainless steel.
6. Counting detection----This filling machine can realize real- time counting,reflecting the output directly.
7. Filling detection----No-bottle no-filling,it will not conduct filling if the bottles are not enough.
8. Expansion function----- We can carry out special configuration according to the customers’ requirements.(material airtight,heating and sterilizing etc.)
9. Maintenance condition-----This filling machine fully accords to the GMP requirements, easy to disassemble and clean.
10. Functional upgrading---We have designed intelligent weighing feedback system to realize the unmanned debugging
function and more preciser filling measurement.
11.Changing specification----No need to change any components,easy to realize changing the bottle types by simple adjusting.
12.Environmental protection configuration---This filling machine is equipped with eco-friendly frame, realizing more cleaner and sanitary operation environment.
13.Intellectual property---This filling machine has gained the China utility model patent.
Peamised tehnilised parameetrid
1. Filling head:24 heads (24/28/32 heads can be selected)
2. Application: 40-1000ml(various bottle shapes)
4.Suitable bottle diameter: 40mm-100mm
5. Filling error: ±1%
6. Filling Speed: ≤9000bottles/hour(100ml water for test)
7.Overall Dimension: 2000mm × 1400mm × 2500mm
8. Air source requirements:stable 0.55Mpa-0.65Mpa air
9. Machine weight: 600 kg
Pakendi tüüp: pudelid
Automaatne hinne: automaatne
Ajami tüüp: elektriline
Võimsus: 1,5 kW
Päritolukoht: Shanghai, Hiina (mandriosa)
Filling Machine: Filling Machine
high speed filling machine: high speed filling machine
