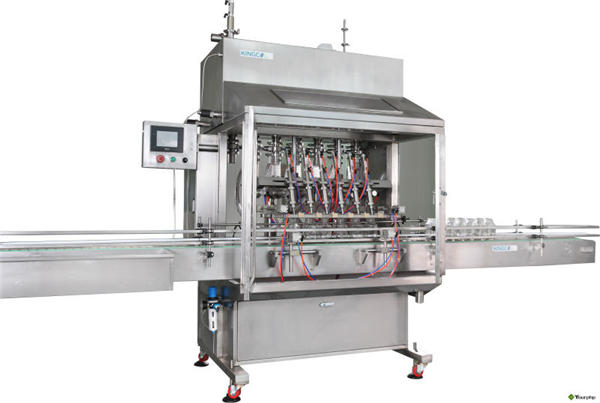

Suhkruvaba kerge sojakaste täitemasin

Peamised omadused

See raskusjõu aja täitmise masin, mis on spetsiaalselt ette nähtud vahutavatele toodetele, näiteks klaasipuhastusvahend, vedelseep ja nii edasi.

(1) PLC juhitav ja sõbralik puutetundlik ekraan.

(2) Kuulsa kaubamärgi elektrilised ja pneumaatilised komponendid, mida kasutatakse masinate kvaliteedi ja pika tööea tagamiseks.

(3) tilgutamise sukeldumisfunktsioon võib olla spetsiaalselt ette nähtud vahutava toote jaoks.

(4) Kõik niisutatud osad on valmistatud SS316-st.

(5) Reguleerida ei saa mitte ainult terveid täitepeasid, vaid ka iga täitepead saab vastavalt reguleerida.

(6) Pudeli sisselaske loendamist, kvantitatiivset täitmist, pudeli väljalaske loendamist ja tõsiseid liigutusi saab teha automaatselt.

(7) Lihtne ülesehitus, lihtne töö, vähese müraga, töökindel, täpne täitmine.

suitable for liquid packing : apple vinegar ,soy sauce ,vinegar ,fish sauce soy sauce and so on ...

miks sobib


1 :for different bottle shapes: round ,flat and so on for different kinds shapes of bottles ,they can share on one filling machine ,no need to change spare parts ...

2: no dropping , the filling machine we have the copy right to make sure there is no dropping after filling ( if any dropping ,soy sauce will make the bottles dirty )

3: Anti corrosive ,soy sauce is corrosive ,even stainless steel after long time use will be corrosive ,the material we use ,all the contact part SS 316L ,make sure machines are working good

4: CIP round liquid tank , as for food ,the standard is higher than others ,can not with angle ,and we have the tank is meet the standard requirement of CIP

5: foaming , we have the device which not only diving to avoide the foaming but also have some other special ways to make sure to decrease the foaming.

filling range : 50ml -1000ml        1L -5L      capacity : 100ml 5000BPH       500ml 4000BPH      1000ml 35000BPH

Tootekirjeldus


is a high-tech filling equipment integrating on the PLC microcomputer programmable control, and photo electricity transduction pneumatic action. The machine is especially suitable for foodstuff. For example: white spirit, soy sauce, vinegar, seasoning, vegetable oil, syrup, mineral water, edible liquid as well as chemical liquid. It has accurate filling measurement; there is not bubble and drop. It suits for the filling of all kinds of bottle (including irregular bottle) ranging from 25 to 1000 ml.

for soy sauce and vinegar such kind of foaming liquid filling ,without dropping ,with accurate filling level

with diving function to decrease foaming during filling

with two kinds of filling speed ,fast filling and slow filling

1,Advanced design

1.1 The machine suits for the filling of different sizes of vessel may change the filling sizes within a few minutes.

1.2 Short filling circle, high production capacity.

1.3 Changing filling circle, high production capacity.

1.4 User may choose the filling volume and decide the filling heads per own production capacity.

1.5 The touching operation color screen, can display the production state, operation procedures and filling ways, tableau objective, operation simple and maintenance convenient.

1.6 Each filling-head is equipped with a bottle-mouth-clamping device, ensuring the injecting material correct aiming at.

2. Unique filling way

2.1 Selecting straight bottle-feeding and bottle-discharging in group, make the filling function extend, the vessels of all kinds of shape are got effective filling.

2.2 Using the world advanced gas filling valve, ensure the filling process non-drop and non-drool.

2.3 Stronger PLC software support, may realize the ideal filling operation.

2.4 Friendly person-machine interface, all operations are completed on the touching color screen.

3. Accurate measurement control

3.1 Using fixed sprue parameter to control the filling time realizing the filling of the different measurements.

3.2 The precision time of the pneumatic valve filling may set to 0.01 second, can make the measurement precision control within ±1%, to decrease unnecessary material loss and enhance the economic efficiency.

3.3 Each filling-head’s measurement may be individually adjusted to realize the same filling measurement.

3.4 The machine set such function: having counting program of bottle-feeding, doesn’t fill as there is not bottle or the counting doesn’t attain a predetermined position, can start filling only when the counter records that the bottle number is same as the setting filling number.

3.5 More or less of the filling volume, may initially adjust to the needed filling volume, then micro adjust, can get the ideal filling measurement precision.

Tehnoloogilised parameetrid


1Kiirus4500-3000 bottles/h
2Täitevahemik100-1000 ml
3Mõõtmise täpsus± 1%
4Tööjõud220 VAC
5Õhurõhk6-7kg/cm²
6Õhu tarbimine0.5m³/minute
7Võimsuse kiirus0,8kw
8Muude seadmete energiatarve5.5kw(aircompressor)
9Neto kaal650kg
10Loenduri suurus2200×870×1900mm

konfiguratsioon


EI.ITEMTARNIJABränd
1PuuteekraanTaiwanWEINVEIW
2PLCJaapanMitsubishi
3Pudelite fotoandurJaapanOPTEX
4solenoidventiilTaiwanSHAKO
5Taseme nuppUSAJOHNSONI KONTROLLID
6nurga all asuv ventiilLiigesegaBURKERT
7Other divicesTaiwanAirtac
8ToitenuppPrantsusmaaSchneider
9NuppPrantsusmaaSchneider
10sageduse konverterPrantsusmaaSchneider
11bottle- transport motorHiinaHuangyan
12Kiiruse reduktorHiinaJiao xing
13ReleeJaapanOmron



Kiirdetailid


Tüüp: täitmismasin
Seisund: uus
Rakendus: rõivad, joogid, keemia, kaubad, toit, masinad ja seadmed, meditsiin
Pakendi tüüp: tünn, pudelid, purgid
Pakkematerjal: klaas, metall, plastik
Automaatne hinne: automaatne
Ajami tüüp: Pneumaatiline
Pinge: 220 V 50 HZ
Võimsus: 1,8 kW
Place of Origin: Shangahi, China (Mainland)
Kaubamärk: NPACK
Dimension(L*W*H): 2200*870*2300mm
Kaal: 650kg
Certification: ISO CE CCVO SONCAP
Pakutakse müügijärgset teenindust: masinate hooldamiseks välismaal asuvad insenerid
body material: SS 304
contact part: SS 316
