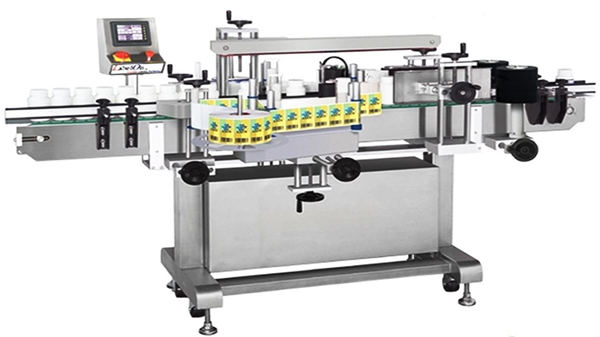

Automaatne kahepoolse klaaspudeli märgistamise masin

Tootekirjeldus

Intellectual Labeling Machine is controlled by the PLC, HMI and servo drive labeling. The machine is easy to operate and has helping function and fault indication function. It is suitable for the self-adhesive labeling of round bottles.

Funktsionaalsed omadused


1. The servo motor labeling structure and PLC control make sure the high speed and precision of labeling
2. The labeling part uses the handle adjusting, it can also adjust for the bottles with conicity.
3. The bi-bottle separating structure which makes the space between bottles more accurate.
4. The individual label rolling structure makes the labeling more precise and accurate.
5. The labeling module uses the imported emery, composed the drivenroller structure : good friction which ensures the stability of the labeling.
6.The machine uses the structure of wheels combines with feet which makes the moving of the machines easier.
7.A soft polyurethane is used in the center of the labels, it is applicable to different label rolls.
8.An instruction note is on the machine which is convienient for the operating personnel to change the labels.

Tehnoloogia parameeter


Peamine tehniline parameeter (kui olete huvitatud, võtke meiega ühendust ja saatke teile detailplaneering)
Applicable Bottle Diameter
Φ35-95mm
Pudeli kõrgus
80-230mm
Sildi kõrgus
20-140mm

Sildi pikkus
50-320mm
Märgistamise täpsus
± 1mm
 Maht
≥120 Bottles/min
Kaal:
about 350Kg
Väline mõõde:
2500×1000×1700mm

Kiirdetailid


Tüüp: täitmismasin
Seisund: uus
Rakendus: jook, keemia, tarbekaubad, toit, masinad ja seadmed, meditsiin
Pakendi tüüp: tünn, pudelid, purgid
Pakkematerjal: klaas, metall, plastik
Automaatne hinne: automaatne
Ajami tüüp: elektriline
Voltage: 220V/50hz
Power: 2.2 KW
Päritolukoht: Shanghai, Hiina (mandriosa)
Kaubamärk: NPACK
Dimension(L*W*H): 2500*1000*1700 mm(L*W*H)
Kaal: 350kg
Sertifikaat: CE GMP ISO
Pakutakse müügijärgset teenindust: masinate hooldamiseks välismaal asuvad insenerid
Capacity: 120p/min.
Precision: ±1mm
Applicable Bottle Diameter: 35-95mm
Bottle Height: 80-230mm
Label Height: 20-140mm
Label Length: 50-320mm
Power source: AC220V, 50Hz
Materjal: 316L + 304 roostevaba teras
