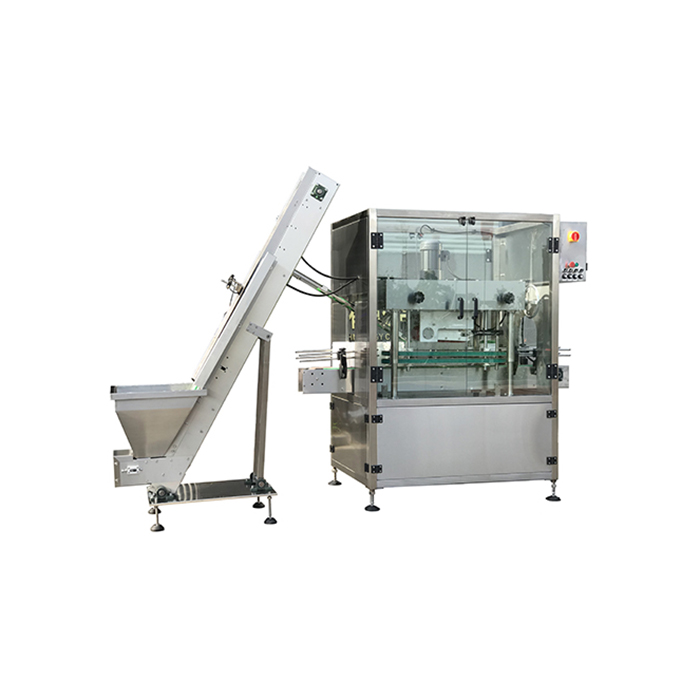

Šampoon / äädikas / oliiviõli pudel pressimise korgimasin

Kodu / Korkimismasinad / Pudeli korkimismasin / Šampoon / äädikas / oliiviõli pudel pressimise korgimasin

Šampoon / äädikas / oliiviõli pudel pressimise korgimasin

Main performance & Characteristics


- Use PLC programmable system, pneumatic control system and color touch screen to form the control center, can random adjusting capping speed.

- After filling, manually put the cap cap on top of filled bottle, then finish the capping process throught the belt-capping mechanism. Subjected to Round cap, can equip the cap sorter & cap feeder together, automatic complete the capping process.

- Machine use stainless steel (316/ 304) for excellent durability and sanitation compliance, the whole machine designed according to GMP standard, easily to disassemble and clean.

- Machine adopting world famous brand electrical elements to ensure the quality and stability.

- No need to change any components, easy to realize changing the cap types by simple adjusting.

Tehnilised parameetrid


Suitable bottle height: 100mm ~ 250mm
Capping speed: 3,000 bottles/ hour
Working Voltage: 220V/ 380V AC

(Or according to customer voltage requirement)

Jõudu: 0.37KW
Materjal: Stainless Steel 316 & 304 (upon request)
Mõõtmed: (L) 2000mm x (W) 690mm x (H) 1770mm
Kaal: 250 Kg

Electical parts


PLC control system: Mitsubishi/ Japan
Touch screen: TouchWin color screen/ Canada
Solenoid valve: AIRTAK/ Taiwan
Cylinder: AIRTAK/ Taiwan
Air source treatment: AIRTAK/ Taiwan
Electro-optical system: Omron/ Japan
Main Electrical elements adopt international famous brand

Kiirdetailid


Tüüp: korgimasin
Seisund: uus
Kasutamine: jook, keemia, tarbekaubad, toit, meditsiin
Ajami tüüp: elektriline
Automaatne hinne: poolautomaatne
Pinge: 3-faasiline juhe, 220 V / 380 V (või vastavalt kliendi pingetele)
Võimsus: 0,37KW
Pakendi tüüp: pudelid
Pakkematerjal: klaas, plastik
Päritolukoht: Shanghai, Hiina (mandriosa)
Kaubamärk: NPACK
Dimension(L*W*H): (L) 2000mm x (W) 690mm x (H) 1770mm
Weight: 250 KG
Certification: ISO 9001 & ISO 14000
Pakutakse müügijärgset teenindust: masinate hooldamiseks välismaal asuvad insenerid
